Description

MIM Bevel Gears are precision gears designed to transmit power between intersecting shafts, typically at 90 degrees.

Its teeth are arranged along the conical surface, allowing efficient power transmission even in confined spaces. This makes bevel gears ideal for systems requiring precise motion control and stable power transfer.

Key Features:

Conical Design: Perfect for right-angle power transmission.

Compact Structure: Suitable for limited-space operations.

High Precision: Ensures seamless integration and performance stability.

Jetvision provides customized bevel gears tailored to your exact requirements. Whether you need straight, spiral, or custom powdered metal bevel gears, we offer precise specifications tailored to your operational needs. Our specifications include:

Module (Gear Size): Designed according to application needs.

Teeth Number: Customizable to meet specific performance criteria.

Teeth Width: Precisely controlled for optimal performance.

Angle: Common pressure angles like 20° are available.

Gear Types:

-Straight Bevel Gears

-Spiral Bevel Gears

Gear Shapes:

-Straight Bevel

-Spiral Bevel

-Skew Bevel

-Hypoid Bevel

Metal Injection Molding is suitable for bevel gears requiring:

Complex conical geometries

Tight tolerances

High wear resistance

Cost-effective mass production

Available Materials

Stainless Steel	304L, 316L, 17-4 PH, 420, 430, 440
Titanium Alloy	Ti-6Al-4V
Superalloys	Inconel, Hastelloy, Co-based Low Alloy Steels, 2-8% Ni (4600, 4650)
Magnetic Alloys	2-6% Si-Fe, 50% Ni-Fe, 50% Co-Fe
Controlled Expansion Alloys	Fe-36Ni (Invar), F-15 (Kovar)
Electrical Materials	Pure Copper, Beryllium-Copper, Brass
Tool Steels	AISI M2, M3/2, M4, T15, M42, D2
Heavy Alloys	Tungsten-Copper, W-Fe-Ni, Molybdenum-Copper, Custom compostions to suit customer specifications

Material selection can be customized according to strength, wear resistance, corrosion resistance, and magnetic performance requirements.

Key Advantages:

● Complex Geometry Capability

Ideal for conical gear designs.

● Excellent Precision

Improves transmission efficiency.

● Reduced Manufacturing Costs

Eliminates extensive machining.

What are the Main Applications of Bevel Gears?

Powdered metal bevel gears are extensively used in industries requiring precise and stable power transmission, including:

Hunan Jetvision

Power Tools:

-Electric drills

-Screwdrivers

-Grinders

Industrial Machinery:

-Transmission systems

-Machining equipment

Actuators:

-Automated control systems

-Motion control devices

Medical Devices:

-Surgical instruments

-Precision medical equipment

These applications demonstrate bevel gears' versatility in delivering reliable performance across diverse industries.

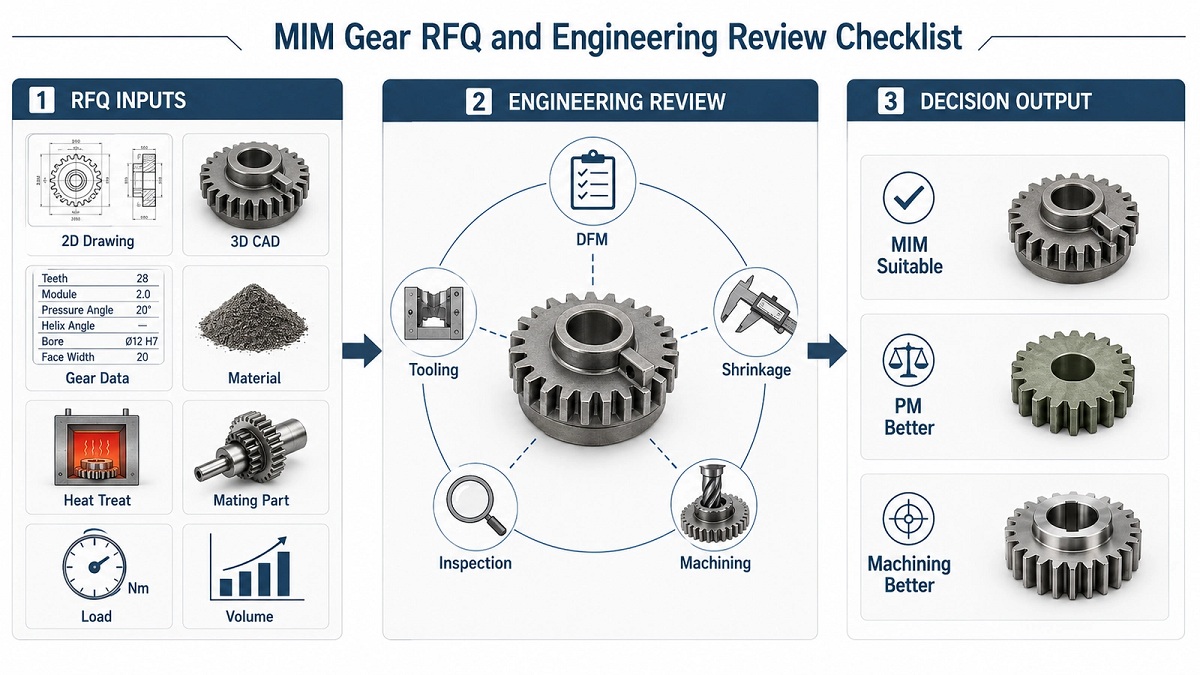

How We Review a MIM Gear Drawing Before Quotation

A useful MIM gear quotation should begin with manufacturability review, not only price calculation. The review should identify whether the gear is a good MIM candidate or whether PM, machining, hobbing, or grinding is more practical. This prevents the project from paying for MIM tooling when the real constraint is tooth accuracy, volume, heat treatment distortion, or a geometry that another process can produce more reliably."
