MIM Worm Gears

MIM Worm Gears are precision transmission components designed for high reduction ratios and compact mechanical systems.

A worm gear is a type of mechanical gear system consisting of a worm (screw-like shaft) and a worm wheel (gear). When the worm rotates, it turns the worm wheel to transmit motion and torque at a right angle. This setup is ideal for high reduction ratios and precise, quiet operation.

The worm meshes with the teeth of the worm wheel, typically at a 90-degree angle. As the worm turns, it gradually pushes the teeth of the wheel, resulting in smooth and controlled motion.

This mechanism is known as a worm drive and is unique because:

-It offers high gear reduction in a compact form

-The worm can drive the wheel, but the wheel usually cannot drive the worm (non-backdrivable), adding a braking effect

-It provides shock absorption and vibration dampening

Worm gears appear in mechanical design from instrument tuners and lifting jacks to vehicle steering gearboxes and conveyor drives. Their ability to convert high-speed, low-torque input into low-speed, high-torque output—often with built-in self-locking behavior—makes them one of the most useful gear families for motion control. This guide explains worm gear geometry, the steel-bronze material pairing, common failure modes, and where metal injection molding becomes the smarter choice over conventional hobbing.

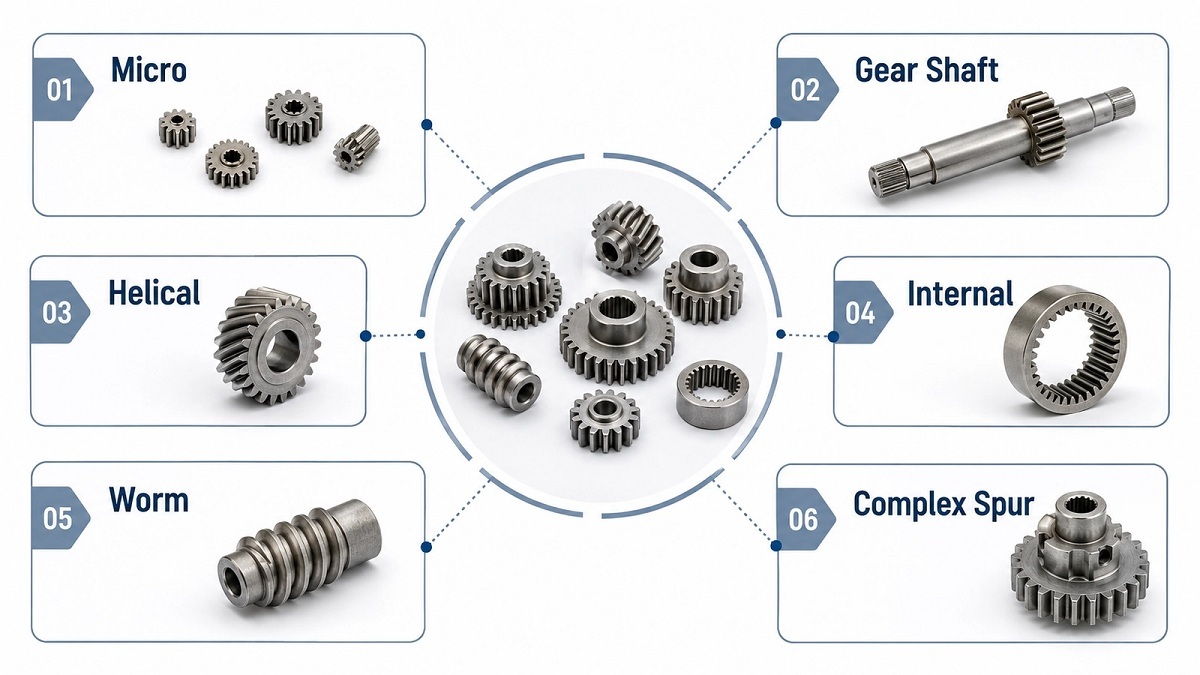

MIM Gear Types Commonly Reviewed for Production

Metal Injection Molding is suitable for hand tool components requiring:

High mechanical strength

Wear resistance

Complex geometries

Reduced machining costs

High-volume manufacturing

Available Materials:

17-4PH Stainless Steel

Low Alloy Steel

Copper Alloys

Key Advantages：

● High Reduction Ratios

Suitable for compact drive systems.

● Self-Locking Capability

Ideal for safety-related applications.

● Reduced Noise

Smooth and reliable operation.

FAQ：

What are the benefits of MIM worm gears?

MIM provides cost-effective production of complex worm geometries with excellent precision and wear resistance.

Why choose MIM instead of casting?

MIM offers superior precision, better surface quality, and more complex geometries."
