How to Choose Materials for Powder Metallurgy Components

Material selection is one of the most important decisions when manufacturing powder metallurgy components. The right powder metallurgy material affects not only the strength and wear resistance of a component, but also its dimensional accuracy, machinability, corrosion resistance, production cost and service life.

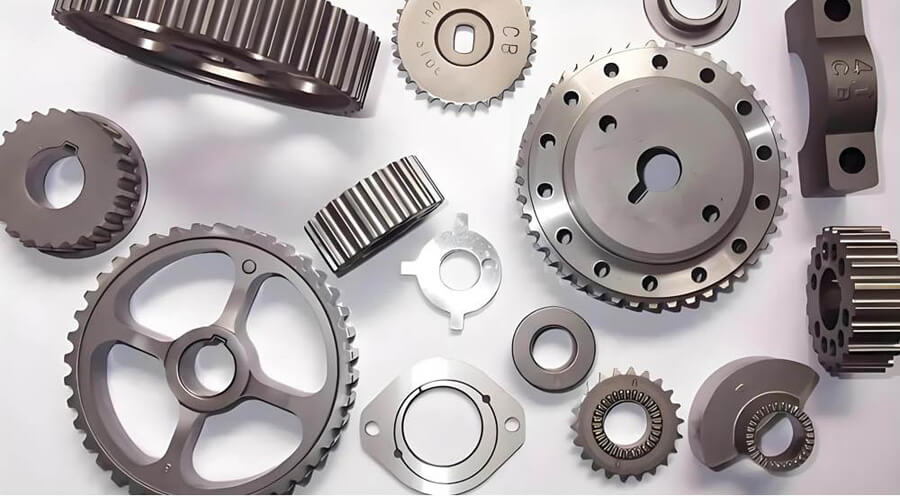

Powder metallurgy can process a wide range of ferrous and non-ferrous materials, making it suitable for gears, bearings, structural parts, bushings, automotive components, hardware parts and other precision metal components. However, the best material depends on the actual operating conditions and performance requirements of the finished part.

For engineers and procurement teams sourcing custom powder metallurgy components, several key factors should be evaluated before selecting the material.

Consider the Required Mechanical Properties

The first step is to determine the mechanical properties required by the application.

Powder metallurgy components may be exposed to different combinations of tensile loads, compression, impact, friction and vibration. Material selection should therefore consider:

· Tensile and yield strength  · Hardness  · Impact resistance  · Fatigue strength  · Wear resistance  · Toughness  · Dimensional stability

For example, structural powder metallurgy parts used in automotive or industrial equipment may require higher strength and fatigue resistance, while bushings and other sliding components may place greater emphasis on wear resistance and friction performance.

The material should be selected according to the actual load and operating conditions rather than simply choosing the highest strength material.

Select the Right Ferrous Powder Metallurgy Material

Ferrous materials are widely used for powder metallurgy components because they offer a practical combination of strength, wear resistance, machinability and cost.

Iron-Based Powder Metallurgy Materials

Iron-based powder metallurgy materials are commonly used for structural parts, gears, sprockets, automotive components and general mechanical components.

Their properties can be adjusted through alloying, compaction density, sintering conditions and subsequent heat treatment.

Common alloying elements include:

· Carbon for improving hardness and strength

· Copper for improving strength and dimensional properties

· Nickel for improving toughness and hardenability

· Molybdenum for improving strength and hardenability

· Chromium for improving wear resistance and hardenability

For general mechanical applications, iron-based PM materials can provide a cost-effective solution for high-volume production.

Stainless Steel Powder Metallurgy Materials

When corrosion resistance is important, stainless steel powder metallurgy materials may be a better choice.

Common stainless steel grades used in powder metallurgy include 304, 316L and other application-specific stainless steel compositions.

Stainless steel PM components are suitable for applications involving:

· Moisture   · Chemical exposure   · Food processing equipment   · Medical and laboratory equipment

· Marine environments   · Corrosive industrial conditions

The specific grade should be selected according to the actual chemical environment and required mechanical performance.

Consider Wear Resistance for Moving Components

Wear is a major consideration for powder metallurgy gears, bushings, bearings and other components subjected to repeated contact or sliding.

For these applications, material selection should consider:

· Contact pressure   · Sliding speed   · Lubrication conditions   · Operating temperature   · Surface hardness   · Expected service life

Iron-based alloy materials can be combined with appropriate density control and heat treatment to improve wear resistance. Other material systems and secondary treatments may also be considered when the component operates under severe wear conditions.

For PM gears and transmission components, material selection should be evaluated together with tooth geometry, density distribution, heat treatment and surface finishing.

Evaluate Corrosion Resistance

If a powder metallurgy component operates in a corrosive environment, corrosion resistance becomes a primary material-selection factor.

Stainless steel and other corrosion-resistant powder metallurgy materials can be considered for components exposed to water, chemicals, humidity or aggressive atmospheres.

However, corrosion resistance depends not only on the nominal material grade. Powder metallurgy processing parameters can affect the final porosity and microstructure of the component, which may influence its resistance to certain environments.

Therefore, engineers should specify the actual service medium, temperature and expected operating conditions when selecting a material.

Match Material Selection with Component Density

Density is particularly important in powder metallurgy because the manufacturing process involves compacting metal powder into a predetermined shape before sintering.

Higher density generally contributes to improved mechanical properties, while controlled porosity can be beneficial for specific applications.

For example, structural PM components may require high density to achieve the necessary strength. In contrast, self-lubricating oil-impregnated bearings intentionally retain interconnected pores so that lubricant can be stored and released during operation.

This means that the target density should be considered together with the material grade and component function.

Consider Heat Treatment and Secondary Processing

Material selection should not be separated from the planned post-processing route.

Depending on the application, powder metallurgy components may undergo:

· Carburizing   · Carbonitriding   · Quenching and tempering   · Steam treatment   · Surface hardening

· Sizing   · Machining   · Grinding   · Impregnation   · Surface coating

For example, PM gears may require a combination of suitable alloy composition and surface hardening to achieve the required combination of core toughness and surface wear resistance.

When requesting a quotation for custom PM parts, it is useful to specify both the material and the required post-treatment rather than treating them as separate decisions.

Consider Dimensional Accuracy and Production Volume

Powder metallurgy is particularly attractive for high-volume production because components can be formed close to their final geometry, reducing material waste and machining requirements.

However, material selection can affect:

· Sintering shrinkage   · Dimensional change   · Shape stability   · Tolerance control   · Machinability

For high volume precision components, the selected material should be compatible with the required dimensional tolerances and production process.

For more complex components, secondary sizing or machining may be required to achieve tighter tolerances.

Select Materials According to the Application

Different applications require different combinations of material properties.

There is no single powder metallurgy material that is ideal for every application. The correct choice depends on the combination of mechanical loads, environment, geometry, production volume and cost requirements.

Material Selection Should Start with the Working Conditions

A common mistake is to select a powder metallurgy material based only on the component name.

For example, two PM gears may have completely different material requirements if one operates in a low-load consumer product while the other is used in an industrial transmission system.

Before selecting the material, engineers should provide information such as:

· Component function   · Applied load   · Rotational speed   · Operating temperature   · Lubrication conditions

· Corrosive exposure   · Required hardness   · Dimensional tolerances   · Expected service life   · Annual production volume

This information allows the PM manufacturer to evaluate the material, density, sintering process and secondary operations as an integrated manufacturing solution.

Work with a Powder Metallurgy Manufacturer Early

For custom powder metallurgy components, material selection is closely connected with tooling design, powder characteristics, compaction, sintering and secondary processing.

An experienced powder metallurgy manufacturer can help evaluate whether the selected material and manufacturing route are suitable for the component geometry and performance requirements.

At the quotation stage, buyers should provide drawings or 3D models together with material requirements, annual quantities, tolerances, hardness specifications and application conditions whenever possible.

This helps the manufacturer develop a more appropriate powder metallurgy manufacturing process and avoid unnecessary changes later in production.

Choosing the right material for powder metallurgy components requires more than selecting a standard metal grade. Mechanical properties, wear resistance, corrosion resistance, density, dimensional accuracy, heat treatment, operating conditions and production volume should all be considered together.

Iron-based materials are widely used for structural and mechanical PM parts, while stainless steel and other specialized materials can provide additional corrosion resistance or performance for demanding applications.

For custom powder metallurgy components, the best material is ultimately the one that provides the required performance while remaining compatible with the component geometry, manufacturing process and production volume.

By evaluating material selection together with powder metallurgy processing, engineers and procurement teams can achieve more reliable component performance, consistent quality and cost-effective production.
